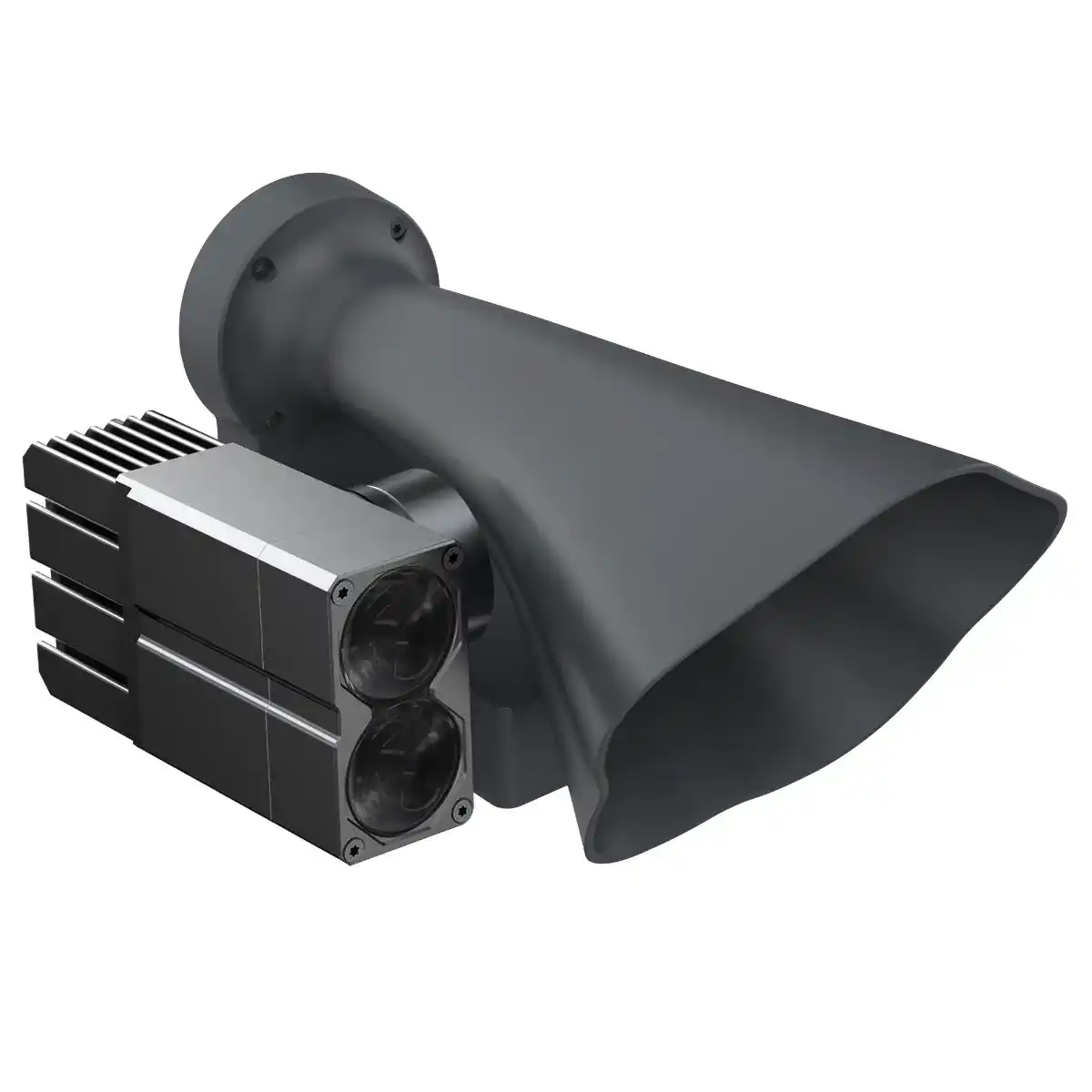

CZI LP12 Spotlight & Loudspeaker 2-in-1 Payload for DJI Matrice 30 Drone

CZI LP12 Spotlight & Loudspeaker 2-in-1 Payload for DJI Matrice 30 Drone

The CZI LP12 is a dual-purpose payload that adds to the operational capacity of the the DJI Matrice 30 series drones by integrating a high-powered spotlight with a loudspeaker system. It enhances the drone’s utility with an exceptionally light and streamlined build which minimizes air drag and extends flight times.

• Loudspeaker: Can achieve a maximum sound pressure of 122dB, projecting clear and powerful audio across expansive areas. This high sound pressure level allows the loudspeaker to cover an effective broadcasting distance of up to 200 meters at 76 dB and can reach up to 350 meters at 69 dB.

This broadcasting capability is further enhanced by the unit’s versatility in handling different audio formats such as mp3, wav, m4a, flac, and aac, and it supports multiple broadcasting methods including live broadcasting, playing pre-recorded audio files, and utilizing text-to-speech technology that supports multiple languages.

• Spotlight: Its power varies between modes: 30 watts in regular mode and 40 watts in ultra-bright and flashing modes, catering to different operational requirements. The field of view is narrowly focused at 13°, which allows for concentrated light beams that are effective over long distances.

This design is advantageous for pinpointing specific areas or objects from afar. For instance, at a distance of 100 meters, the spot diameter measures 22.8 meters, providing a well-defined and intense beam of light.

Key Features of CZI LP12

• Integrated Lighting and Broadcasting: Combines the functionalities of a searchlight and broadcasting system, allowing for simultaneous illumination and communication.

• Advanced Optics and Audio Technology: Features cutting-edge Gimbal Light Series optics and Long Range Acoustic Device (LRAD) technology from the Mega Phone Series for clear and powerful sound and light output.

• Streamlined Design: Minimizes wind resistance and enhances aerodynamics, which in turn extends the duration of flight operations.

• Lightweight Build: At just 288 grams, it is light enough to not significantly impact the drone’s flight efficiency.

• User-friendly Integration: Works with the DJI Pilot App, providing users with easy access to control both light and sound functions quickly and efficiently.

• Quick Mount System: Designed for easy attachment and removal, ensuring rapid deployment and versatility in various operational contexts.

• Long-Distance Operation: Capable of broadcasting clear audio up to 200 meters and illuminating areas effectively up to 100 meters.

• Versatile Applications: Equally effective in both security patrols and search and rescue missions, adding valuable capabilities to the drone.

• Durable and Robust: Designed to operate in a range of temperatures from -20°C to +50°C, ensuring reliability under various environmental conditions.

• Multi-Language Support: The broadcasting system supports multiple languages, enhancing its utility in diverse geographic locations.

Applications of CZI LP12

• Emergency Response: Ideal for search and rescue operations in remote or hard-to-reach areas, providing both illumination and communication capabilities.

• Security Oversight: Can be used for security patrols, offering a dual solution for lighting areas and broadcasting warnings or communications.

• Event Management: Useful in managing large events where directing crowds or delivering announcements is necessary from a distance.

• Environmental Monitoring: Assists in wildlife and environmental monitoring, especially in nocturnal settings.

The CZI LP12 enhances the DJI Matrice 30’s capabilities, making it a premier choice for professionals seeking more for their enterprise drone.

Discover the Dronefly Difference

Choosing Dronefly gets you quality drones and accessories, and also enhances your entire drone experience:

• Personalized Expertise: Our team of seasoned drone specialists is ready to assist you with any inquiries, ensuring you maximize your drone’s potential.
• Fast and Secure Delivery: Time is of the essence, and we respect that. Experience swift and dependable delivery that brings your drone parts to your doorstep without delay.
• Products You Can Trust: As an authorized dealer for premier drone brands, Dronefly guarantees genuine products backed by full manufacturer warranties, giving you peace of mind with every purchase.

Specifications

• Part Number: s-nb-ls-sl-m30

• Weight: 288g (without quick-mount fixture); 306g (with quick-mount fixture).

• Dimensions: 156mm x 109mm x 84mm.

• Power Output: Searchlight operates at 30W in regular mode and 40W in ultra-bright or flashing modes; Speaker has a 15W output.

• Luminous Flux: 2122±3% lumens.

• Field of View: Searchlight provides a 13° field of view.

• Illuminated Area: Lights up to 917 square meters at a distance of 150 meters.

• Gimbal Movement: Pitch range from -120° to +45°, aligning with the drone camera.

• Operating Temperatures: From -20°C to +50°C.
